Lithology parity: comparing the geological composition of the two cities#

This example teaches you how to read the GeoPrior lithology parity figure.

Before comparing forecasts, uncertainty, or physics fields between two cities, it is useful to ask a simpler question:

Are the two cities compositionally similar in their lithology mix, or are they built from meaningfully different geological proportions?

That is what the lithology-parity figure is for.

What the figure shows#

The real plotting backend builds a two-panel figure.

Left panel#

Normalized composition bars for Nansha and Zhongshan across the selected lithology classes.

Right panel#

Difference bars showing:

(1)#\[\Delta p = p_{Zhongshan} - p_{Nansha}\]

for each class.

The title line also reports a simple association test:

  • \(\chi^2\)

  • degrees of freedom

  • approximate p-value

  • Cramér’s \(V\)

Why this matters#

A city-to-city model comparison can be misleading if the two cities differ strongly in their underlying material composition.

This figure helps the reader see:

  • which classes dominate each city,

  • whether the differences are broad or localized,

  • whether the overall composition gap is small or large,

  • and whether “other” categories should be grouped for a cleaner comparison.

This gallery page creates two compact synthetic city tables so the example is fully executable during the documentation build.

Imports#

We use the real helper functions from the existing script:

  • compute_proportions(…)

  • draw_lithology_parity(…)

That keeps the gallery page aligned with the real figure logic.

from __future__ import annotations

import tempfile
from pathlib import Path

import matplotlib.image as mpimg
import matplotlib.pyplot as plt
import numpy as np
import pandas as pd

from geoprior.scripts.plot_litho_parity import (
    chisq_cramers_v,
    compute_proportions,
    draw_lithology_parity,
)

Step 1 - Build two synthetic city datasets#

The real script reads one CSV per city and then counts the selected categorical column, which defaults to lithology_class.

For a teaching page, we create two small synthetic datasets with overlapping but not identical lithology compositions.

rng = np.random.default_rng(8)

classes = [
    "Clay",
    "Silt",
    "Fine sand",
    "Medium sand",
    "Coarse sand",
    "Gravel",
    "Weathered rock",
    "Bedrock",
    "Peat",
    "Fill",
]

# Nansha: more soft sediments and fill.
p_ns = np.array(
    [0.19, 0.16, 0.15, 0.10, 0.07, 0.05, 0.09, 0.06, 0.05, 0.08]
)

# Zhongshan: slightly more coarse and rocky material.
p_zh = np.array(
    [0.12, 0.12, 0.13, 0.12, 0.10, 0.09, 0.12, 0.11, 0.03, 0.06]
)

n_ns = 2600
n_zh = 2400

ns = pd.DataFrame(
    {
        "year": rng.choice(
            [2021, 2022, 2023],
            size=n_ns,
            p=[0.25, 0.40, 0.35],
        ),
        "lithology_class": rng.choice(
            classes,
            size=n_ns,
            p=p_ns,
        ),
    }
)

zh = pd.DataFrame(
    {
        "year": rng.choice(
            [2021, 2022, 2023],
            size=n_zh,
            p=[0.22, 0.43, 0.35],
        ),
        "lithology_class": rng.choice(
            classes,
            size=n_zh,
            p=p_zh,
        ),
    }
)

print("Synthetic dataset sizes")
print(f"  Nansha:    {len(ns)}")
print(f"  Zhongshan: {len(zh)}")

Synthetic dataset sizes
  Nansha:    2600
  Zhongshan: 2400

Step 2 - Select the comparison setup#

The real script supports:

  • a target categorical column,

  • optional year filtering,

  • top_n class selection,

  • optional grouping of the rest into “Others”.

Here we keep all years together and ask for the 8 most common classes, with the remainder grouped as Others.

col = "lithology_class"
top_n = 8
group_others = True

dfp, core_classes, counts_mat = compute_proportions(
    ns,
    zh,
    col=col,
    top_n=top_n,
    group_others=group_others,
)

print("")
print("Proportion table preview")
print(dfp.head(10).to_string(index=False))

Proportion table preview
         class      city  proportion
   Coarse sand    Nansha      0.0627
   Coarse sand Zhongshan      0.0992
        Gravel    Nansha      0.0523
        Gravel Zhongshan      0.1025
       Bedrock    Nansha      0.0600
       Bedrock Zhongshan      0.1050
Weathered rock    Nansha      0.1004
Weathered rock Zhongshan      0.1092
   Medium sand    Nansha      0.0954
   Medium sand Zhongshan      0.1313

Step 3 - Read the association statistics directly#

The real figure title includes the results of the 2×K composition test. We compute them here before plotting so the reader sees what those summary numbers mean.

chi2, pval, dof, cv = chisq_cramers_v(counts_mat)

print("")
print("Parity statistics")
print(f"  chi2      = {chi2:.4f}")
print(f"  dof       = {dof}")
print(f"  p-value   = {pval:.4f}")
print(f"  Cramer'sV = {cv:.4f}")

Parity statistics
  chi2      = 181.9989
  dof       = 8
  p-value   = 0.0000
  Cramer'sV = 0.1908

Step 4 - Render the real figure#

The real plotting helper only needs:

  • the proportion table,

  • the 2×K count matrix,

  • the column name,

  • the output path,

  • and whether the two panels should share the y axis.

It does not accept the generic plot text controls used by some of the other scripts, so we keep this call minimal and exact.

tmp_dir = Path(
    tempfile.mkdtemp(prefix="gp_sg_litho_par_")
)
out_base = tmp_dir / "lithology_parity_gallery"

draw_lithology_parity(
    dfp,
    counts_mat,
    col=col,
    outpath=out_base,
    sharey=True,
)

[OK] Wrote /tmp/gp_sg_litho_par_elrak10n/lithology_parity_gallery.png/.svg

Step 5 - Show the actual PNG produced by the backend#

The real helper writes PNG and SVG. For the gallery page, we display the PNG result directly.

img = mpimg.imread(str(out_base) + ".png")

fig, ax = plt.subplots(figsize=(8.2, 4.6))
ax.imshow(img)
ax.axis("off")

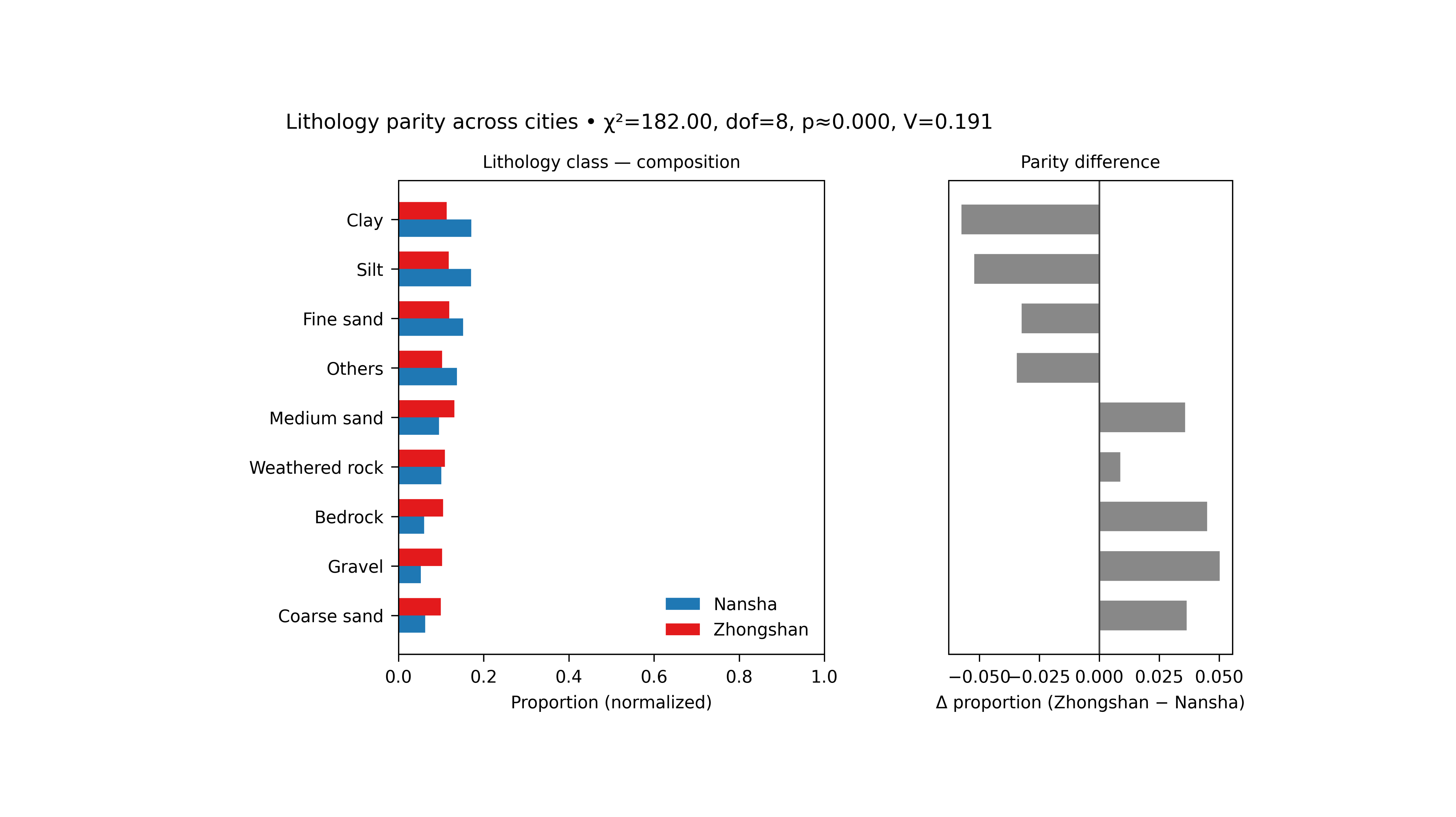

plot litho parity
(np.float64(-0.5), np.float64(4000.5), np.float64(2454.5), np.float64(-0.5))

Step 6 - Quantify the largest class differences#

The right-hand panel shows:

proportion(Zhongshan) - proportion(Nansha)

Let us compute those differences explicitly so the figure and the numbers tell the same story.

classes_order = list(dfp["class"].cat.categories)

ns_props = []
zh_props = []

for cls in classes_order:
    m_ns = (dfp["class"] == cls) & (dfp["city"] == "Nansha")
    m_zh = (dfp["class"] == cls) & (dfp["city"] == "Zhongshan")
    ns_props.append(
        float(dfp.loc[m_ns, "proportion"].iloc[0])
        if m_ns.any()
        else 0.0
    )
    zh_props.append(
        float(dfp.loc[m_zh, "proportion"].iloc[0])
        if m_zh.any()
        else 0.0
    )

diff_df = pd.DataFrame(
    {
        "class": classes_order,
        "delta_prop": np.asarray(zh_props) - np.asarray(ns_props),
    }
).sort_values("delta_prop", ascending=False)

print("")
print("Largest positive differences (Zhongshan - Nansha)")
print(diff_df.head(5).to_string(index=False))

print("")
print("Largest negative differences (Zhongshan - Nansha)")
print(diff_df.tail(5).to_string(index=False))

Largest positive differences (Zhongshan - Nansha)
         class  delta_prop
        Gravel      0.0502
       Bedrock      0.0450
   Coarse sand      0.0365
   Medium sand      0.0359
Weathered rock      0.0088

Largest negative differences (Zhongshan - Nansha)
         class  delta_prop
Weathered rock      0.0088
     Fine sand     -0.0324
        Others     -0.0344
          Silt     -0.0521
          Clay     -0.0574

Step 7 - Learn how to read the left panel#

The left panel is the composition panel.

It shows the normalized proportions for the two cities, not raw counts. That matters because the two datasets do not need to have exactly the same number of rows.

A useful reading order is:

  1. identify the largest bars in each city,

  2. see which classes are dominant in both cities,

  3. check whether the same top classes appear in roughly the same order.

If the two composition profiles are broadly similar, then later differences in model behavior are less likely to be explained only by a gross mismatch in lithology mix.

Step 8 - Learn how to read the right panel#

The right panel is the parity-difference panel.

Positive bars mean:

Zhongshan has a larger proportion than Nansha

Negative bars mean:

Nansha has a larger proportion than Zhongshan

This panel is often easier to interpret than the left one when the reader wants to know:

“Which lithology classes are really driving the city-to-city difference?”

It turns a two-profile comparison into a direct signed contrast.

Step 9 - Learn how to read the title statistics#

The figure title includes chi-square style association information:

  • chi2

  • dof

  • p

  • Cramer’s V

The most intuitive one here is often Cramer’s V.

It is an effect-size style measure for the overall difference in composition. A larger value means the two cities differ more strongly in their categorical makeup.

So the title tells you not only where the bars differ, but also whether the overall composition gap is weak or strong.

Step 10 - Practical takeaway#

This figure is useful because it gives a fast geological context page before deeper model comparisons.

It helps answer:

  • are the two cities compositionally similar?

  • which classes differ the most?

  • is the overall difference mild or substantial?

In practice, this makes the later forecasting and physics figures easier to interpret, because the reader has already seen whether the two cities start from similar or different lithological foundations.

Command-line version#

The same figure can be produced from the command line.

The real script supports:

  • --src for the dataset directory,

  • --ns-file and --zh-file for the two CSV files,

  • city flags (which must resolve to both Nansha and Zhongshan),

  • --col for the categorical column,

  • --year for optional filtering,

  • --sample-frac or --sample-n,

  • --top-n,

  • --group-others,

  • --sharey,

  • and --out.

Legacy dispatcher:

python -m scripts plot-litho-parity \
  --src data/final_dataset \
  -ns -zh \
  --col lithology_class \
  --year all \
  --top-n 8 \
  --group-others true \
  --sharey true \
  --out figS1_lithology_parity

Year-specific comparison:

python -m scripts plot-litho-parity \
  --src data/final_dataset \
  -ns -zh \
  --col lithology_class \
  --year 2022 \
  --sample-n 5000 \
  --out figS1_lithology_parity_2022

Modern CLI:

geoprior plot litho-parity \
  --src data/final_dataset \
  -ns -zh \
  --col lithology_class \
  --out figS1_lithology_parity

The gallery page teaches the figure. The command line reproduces it in a workflow.
