Physics sanity: checking closure agreement and residual behavior#

This example teaches you how to read the GeoPrior physics-sanity figure.

Unlike a map-based figure, this page is not mainly about where things happen in space. It is about whether the inferred physics looks self-consistent.

The figure asks two practical questions for each city:

  1. Does the learned relaxation timescale \(\tau\) broadly agree with the prior or closure timescale?

  2. Are the consolidation residuals \(R_{\mathrm{cons}}\) centered and reasonably controlled, or do they show strong drift and spread?

This makes the figure useful as a compact sanity check between field inference and residual behavior.

What the figure contains#

The plotting backend builds a 2×2 layout for exactly two cases.

For each city:

  • the left panel compares \(\tau\) and \(\tau_{\mathrm{prior}}\) (or \(\tau_{\mathrm{closure}}\) depending on metadata),

  • the right panel shows the distribution of the consolidation residual \(R_{\mathrm{cons}}\).

The backend also computes summary metrics such as:

  • r2_logtau

  • eps_prior_rms

  • eps_cons_rms

  • tau_ratio_median

Why this matters#

A model can produce plausible-looking forecasts while still learning a physically awkward internal state.

This figure helps you answer questions like:

  • Is the learned \(\tau\) mostly tracking the closure-based timescale, or drifting away from it?

  • Are the consolidation residuals tightly concentrated near zero, or broad and biased?

  • Is one city physically cleaner than the other?

In other words, this is a figure for trust calibration.

This gallery page uses two synthetic cities so the lesson is fully executable during the documentation build.

Imports#

We use the real physics-sanity backend from the project code. The gallery page therefore teaches the real plotting engine.

from __future__ import annotations

import tempfile
from pathlib import Path

import matplotlib.image as mpimg
import matplotlib.pyplot as plt
import numpy as np

from geoprior.scripts.plot_physics_sanity import (
    render_physics_sanity,
)

Step 1 - Build a synthetic domain#

Even though this figure is not a map, we still synthesize physically meaningful arrays for two city-scale cases.

Each case needs:

  • tau

  • tau_prior

  • K

  • Ss

  • Hd

  • cons

where cons is the consolidation residual series used for the histogram panel.

n = 6000
rng = np.random.default_rng(42)

Step 2 - Create the first city#

City A is designed to be the “better behaved” case:

  • tau is close to tau_prior,

  • the log-space agreement is strong,

  • and residuals are narrow and centered near zero.

lp_a = rng.normal(loc=0.18, scale=0.18, size=n)
tau_prior_a = 10.0 ** lp_a

tau_a = tau_prior_a * (
    10.0 ** rng.normal(loc=0.015, scale=0.055, size=n)
)

K_a = 10.0 ** rng.normal(loc=-5.8, scale=0.18, size=n)
Ss_a = 10.0 ** rng.normal(loc=-4.7, scale=0.12, size=n)
Hd_a = np.clip(
    rng.normal(loc=20.0, scale=2.0, size=n),
    12.0,
    None,
)

cons_a = rng.normal(loc=0.0, scale=2.5e-6, size=n)

meta_a = {
    "units": {
        "K": "m/s",
        "Ss": "1/m",
        "Hd": "m",
        "tau": "s",
        "tau_prior": "s",
        "cons_res_vals": "m/s",
    },
    "tau_prior_human_name": "tau_closure",
    "tau_closure_formula": (
        r"\frac{H_d^2\,S_s}{\pi^2\,\kappa_b\,K}"
    ),
}

case_a = {
    "city": "Nansha",
    "color": "#2a6f97",
    "path": Path("synthetic_nansha_physics_payload.npz"),
    "meta": meta_a,
    "payload": {},
    "tau": tau_a,
    "tau_prior": tau_prior_a,
    "K": K_a,
    "Ss": Ss_a,
    "Hd": Hd_a,
    "cons": cons_a,
}

Step 3 - Create the second city#

City B is intentionally less aligned:

  • tau departs more strongly from tau_prior,

  • the agreement cloud is broader,

  • and the consolidation residuals are wider and slightly biased.

This gives the lesson a useful contrast.

lp_b = rng.normal(loc=0.28, scale=0.24, size=n)
tau_prior_b = 10.0 ** lp_b

tau_b = tau_prior_b * (
    10.0 ** rng.normal(loc=0.11, scale=0.11, size=n)
)

K_b = 10.0 ** rng.normal(loc=-5.5, scale=0.24, size=n)
Ss_b = 10.0 ** rng.normal(loc=-4.5, scale=0.16, size=n)
Hd_b = np.clip(
    rng.normal(loc=24.0, scale=3.0, size=n),
    12.0,
    None,
)

cons_b = rng.normal(loc=1.2e-6, scale=5.5e-6, size=n)

meta_b = {
    "units": {
        "K": "m/s",
        "Ss": "1/m",
        "Hd": "m",
        "tau": "s",
        "tau_prior": "s",
        "cons_res_vals": "m/s",
    },
    "tau_prior_human_name": "tau_closure",
    "tau_closure_formula": (
        r"\frac{H_d^2\,S_s}{\pi^2\,\kappa_b\,K}"
    ),
}

case_b = {
    "city": "Zhongshan",
    "color": "#c26d3d",
    "path": Path("synthetic_zhongshan_physics_payload.npz"),
    "meta": meta_b,
    "payload": {},
    "tau": tau_b,
    "tau_prior": tau_prior_b,
    "K": K_b,
    "Ss": Ss_b,
    "Hd": Hd_b,
    "cons": cons_b,
}

cases = [case_a, case_b]

Step 4 - Render the figure#

We use the real plotting backend. In plot_mode="joint", the left panels compare tau and tau_prior directly. The right panels show the distribution of R_cons.

The helper saves the figure and returns the summary statistics.

tmp_dir = Path(
    tempfile.mkdtemp(prefix="gp_sg_sanity_")
)
out_base = tmp_dir / "physics_sanity_gallery"

stats = render_physics_sanity(
    cases,
    outbase=out_base,
    dpi=160,
    fontsize=9,
    gridsize=120,
    hist_bins=40,
    clip_q=(1.0, 99.0),
    plot_mode="joint",
    tau_scale="log10",
    show_labels=True,
    show_title=True,
    show_panel_titles=True,
    show_panel_labels=True,
    show_ticklabels=False,
    show_legend=False,
    title=(
        "Synthetic physics sanity: closure agreement and "
        "consolidation residual distribution"
    ),
    paper_format=True,
    paper_no_offset=False,
)

[OK] wrote /tmp/gp_sg_sanity_wb6udr27/physics_sanity_gallery (eps,pdf,png,svg)

Step 5 - Show the saved figure inside the gallery page#

The backend writes .png and .svg outputs. We load the PNG back into a small display figure so Sphinx-Gallery always has a visible rendered result on the page.

img = mpimg.imread(str(out_base) + ".png")
fig, ax = plt.subplots(figsize=(7.0, 4.4))
ax.imshow(img)
ax.axis("off")

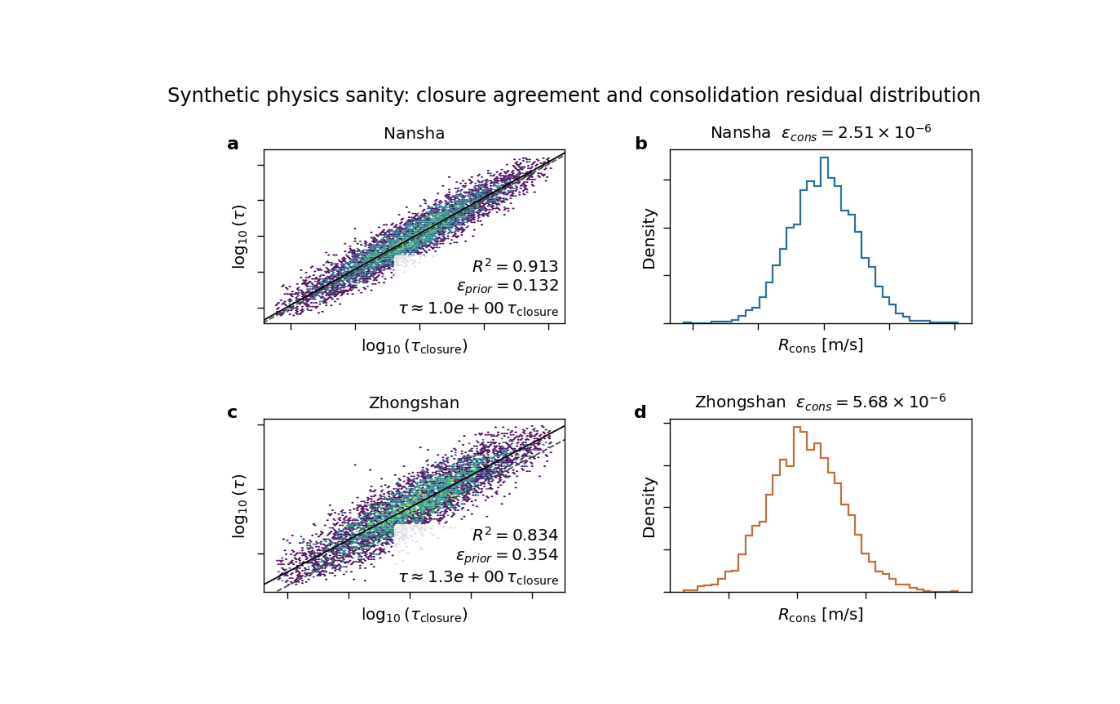

plot physics sanity
(np.float64(-0.5), np.float64(1002.5), np.float64(664.5), np.float64(-0.5))

Step 6 - Inspect the numerical summary#

The backend returns one dictionary per city. These values help turn the visual impression into a more explicit diagnostic.

print("Summary statistics")
for city, rec in stats.items():
    print("")
    print(city)
    print(f"  r2_logtau      = {rec['r2_logtau']:.4f}")
    print(f"  eps_prior_rms  = {rec['eps_prior_rms']:.4e}")
    print(f"  eps_cons_rms   = {rec['eps_cons_rms']:.4e}")
    print(f"  tau_ratio_med  = {rec['tau_ratio_median']:.4f}")

Summary statistics

Nansha
  r2_logtau      = 0.9135
  eps_prior_rms  = 1.3165e-01
  eps_cons_rms   = 2.5058e-06
  tau_ratio_med  = 1.0296

Zhongshan
  r2_logtau      = 0.8339
  eps_prior_rms  = 3.5445e-01
  eps_cons_rms   = 5.6771e-06
  tau_ratio_med  = 1.2799

Step 7 - Add one simple interpretation helper#

A useful teaching trick is to compare the two cities directly. We summarize which city is more closure-aligned and which one has the tighter residual distribution.

city_names = list(stats)
best_r2_city = max(
    city_names,
    key=lambda c: stats[c]["r2_logtau"],
)
best_cons_city = min(
    city_names,
    key=lambda c: stats[c]["eps_cons_rms"],
)

print("")
print("Interpretation helper")
print(
    f"  Stronger tau/tau_prior agreement: {best_r2_city}"
)
print(
    f"  Tighter consolidation residuals: {best_cons_city}"
)

Interpretation helper
  Stronger tau/tau_prior agreement: Nansha
  Tighter consolidation residuals: Nansha

How to read the figure#

Let us read the page like a scientific user.

Left panels#

These panels compare the learned timescale against the closure timescale. In joint mode, points clustering near the 1:1 line indicate broad agreement.

A high r2_logtau means the model is preserving the rank structure of the closure-based timescale rather well. A median tau ratio near 1 means the learned field is not strongly biased upward or downward relative to the prior.

Right panels#

These panels show the distribution of \(R_{\\mathrm{cons}}\).

Ideally, the distribution should be fairly concentrated and not strongly shifted away from zero. A broader distribution usually means the consolidation closure is under more strain. The reported eps_cons_rms gives a compact measure of that spread.

What this synthetic example teaches#

In this lesson, Nansha was built to be the more physically consistent case, while Zhongshan was built to be noisier and slightly biased.

You should therefore see:

  • a tighter left-panel agreement cloud for Nansha,

  • a narrower residual histogram for Nansha,

  • and larger prior / residual error metrics for Zhongshan.

In a real run, this kind of contrast helps you decide whether a city-level physics payload looks credible enough to support stronger scientific interpretation.

Practical takeaway#

This figure is most valuable when you use it early, not only at the end of a paper workflow.

It helps answer:

  • Are my learned timescales staying close to the closure?

  • Are my consolidation residuals under control?

  • Is one city behaving much worse than another?

That is why this is a “sanity” figure: it is compact, fast to inspect, and highly diagnostic.

Command-line version#

The same plotting backend can be used from the CLI with two payload sources. The current script expects exactly two cases, accepts --src twice, and supports options such as --plot-mode, --tau-scale, --cons-kind, --gridsize, --hist-bins, --clip-q, --subsample-frac, --max-points, --out-json, and optional extras like k-from-tau and closure.

Through the current legacy dispatcher:

python -m scripts plot-physics-sanity \
  --src results/ns_run_dir \
  --src results/zh_run_dir \
  --plot-mode joint \
  --tau-scale log10 \
  --cons-kind raw \
  --clip-q 1 99 \
  --out fig4_physics_sanity \
  --out-json fig4_physics_sanity.json

If city names are not inferable from the paths:

python -m scripts plot-physics-sanity \
  --src some/runA \
  --src some/runB \
  --city Nansha \
  --city Zhongshan \
  --extra k-from-tau,closure \
  --out fig4_physics_sanity

And through the modern command family:

geoprior plot physics-sanity \
  --src results/ns_run_dir \
  --src results/zh_run_dir \
  --out fig4_physics_sanity

The gallery page teaches the figure. The CLI reproduces it in a workflow.

Total running time of the script: (0 minutes 5.299 seconds)
