Forecast quick-look with plot_forecasts

This lesson introduces the first forecasting visualizer most users should learn in GeoPrior: geoprior.plot.plot_forecasts().

Why start here?

Many forecasting workflows produce a rich prediction table, but users often need a very fast way to answer simple questions first:

• What does one sample’s forecast look like through the horizon?

• Do the predictive intervals widen with lead time?

• How far are the predictions from the held-out actual values?

• What does one forecast step look like in space?

That is exactly what plot_forecasts is built for.

It works from a long-format forecast table and supports two complementary views:

• temporal view: inspect one or more sample trajectories across forecast steps;

• spatial view: inspect one forecast horizon as a map-like scatter plot.

What the function expects

The plotting backend expects a forecast table with at least:

• sample_idx: identifies each forecasted sample;

• forecast_step: identifies the lead time / horizon step;

• one or more forecast columns such as subsidence_pred or subsidence_q50.

If actual values are available, the table can also include subsidence_actual so the viewer can compare prediction and truth. If spatial plotting is desired, the table should additionally contain coordinate columns such as coord_x and coord_y.

This is the native contract described by the function itself: a long-format DataFrame with sample_idx and forecast_step, plus prediction columns and optional actual/spatial columns. The function supports temporal line views and spatial scatter views from that same table.

What this lesson teaches

This page is organized as a practical reading guide.

We will:

1. build a compact synthetic long-format forecast table,

2. inspect its structure,

3. render a temporal forecast view,

4. render a spatial forecast view for a chosen horizon step,

5. explain how to read each type of panel.

The lesson deliberately uses synthetic data so the page is fully executable during the documentation build.

Imports

We use the real plotting backend from the public plotting API.

from __future__ import annotations

import numpy as np
import pandas as pd

from geoprior.plot import plot_forecasts

Step 1 - Build a compact long-format forecast table

plot_forecasts is designed around a long-format DataFrame. Each row corresponds to:

• one sample,

• one forecast step,

• one set of forecast values for that step.

We create a synthetic forecast table with:

• sample_idx

• forecast_step

• spatial coordinates coord_x and coord_y

• quantile forecasts: subsidence_q10, subsidence_q50, subsidence_q90

• held-out actuals: subsidence_actual

The synthetic values are shaped so they remain easy to interpret:

• subsidence generally rises with forecast step,

• uncertainty widens slightly at longer horizons,

• actual values stay close to the median forecast but are not identical.

rng = np.random.default_rng(42)

n_samples = 18
horizon = 4

x_vals = np.linspace(1000.0, 9000.0, n_samples)
y_vals = np.linspace(1500.0, 7500.0, n_samples)

rows: list[dict[str, float | int]] = []

for sample_idx in range(n_samples):
    x = float(x_vals[sample_idx])
    y = float(y_vals[::-1][sample_idx])

    # sample-specific spatial baseline
    spatial_effect = (
        0.55 * (x / x_vals.max())
        + 0.35 * (y / y_vals.max())
    )

    for step in range(1, horizon + 1):
        lead_effect = 0.42 * step
        nonlinear = 0.08 * np.sin(sample_idx / 2.0 + step)
        median = 1.2 + spatial_effect + lead_effect + nonlinear

        # uncertainty widens with lead time
        half_width = 0.18 + 0.06 * step
        q10 = median - half_width
        q90 = median + half_width

        actual = median + rng.normal(0.0, 0.10)

        rows.append(
            {
                "sample_idx": sample_idx,
                "forecast_step": step,
                "coord_x": x,
                "coord_y": y,
                "subsidence_q10": q10,
                "subsidence_q50": median,
                "subsidence_q90": q90,
                "subsidence_actual": actual,
            }
        )

forecast_df = pd.DataFrame(rows)

print("Forecast table shape:", forecast_df.shape)
print("")
print(forecast_df.head(10).to_string(index=False))

Forecast table shape: (72, 8)

 sample_idx  forecast_step   coord_x   coord_y  subsidence_q10  subsidence_q50  subsidence_q90  subsidence_actual
          0              1 1000.0000 7500.0000          1.8584          2.0984          2.3384             2.1289
          0              2 1000.0000 7500.0000          2.2239          2.5239          2.8239             2.4199
          0              3 1000.0000 7500.0000          2.5224          2.8824          3.2424             2.9574
          0              4 1000.0000 7500.0000          2.8106          3.2306          3.6506             3.3246
          1              1 1470.5882 7147.0588          1.8832          2.1232          2.3632             1.9281
          1              2 1470.5882 7147.0588          2.2113          2.5113          2.8113             2.3811
          1              3 1470.5882 7147.0588          2.4953          2.8553          3.2153             2.8681
          1              4 1470.5882 7147.0588          2.8052          3.2252          3.6452             3.1936
          2              1 1941.1765 6794.1176          1.8884          2.1284          2.3684             2.1267
          2              2 1941.1765 6794.1176          2.1870          2.4870          2.7870             2.4017

Step 2 - Understand the table before plotting

Before calling the viewer, it helps to inspect the structure.

A good quick sanity check is:

• one unique row per (sample_idx, forecast_step),

• forecast steps increasing from 1 to the horizon,

• quantile columns ordered from lower to median to upper,

• actual values available if you want visual comparison.

summary = (
    forecast_df.groupby("forecast_step")
    .agg(
        n_rows=("sample_idx", "size"),
        q10_mean=("subsidence_q10", "mean"),
        q50_mean=("subsidence_q50", "mean"),
        q90_mean=("subsidence_q90", "mean"),
        actual_mean=("subsidence_actual", "mean"),
    )
    .reset_index()
)

print("")
print("Step summary")
print(summary.to_string(index=False))

Step summary
 forecast_step  n_rows  q10_mean  q50_mean  q90_mean  actual_mean
             1      18    1.9106    2.1506    2.3906       2.1375
             2      18    2.2561    2.5561    2.8561       2.5394
             3      18    2.6011    2.9611    3.3211       2.9860
             4      18    2.9594    3.3794    3.7994       3.3932

Step 3 - Temporal forecast view

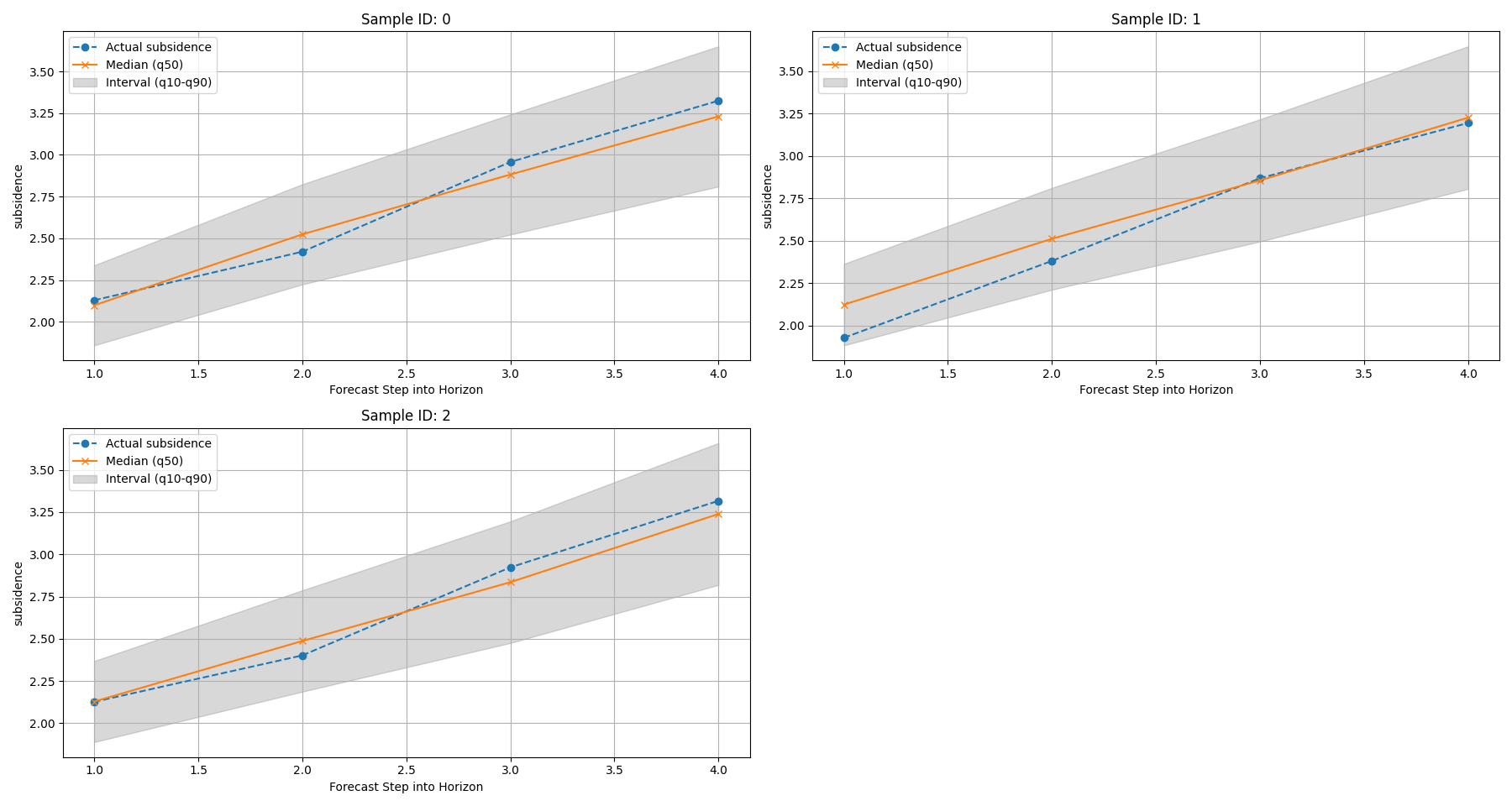

The first and most important use of plot_forecasts is the temporal view.

Here the function selects one or more samples and plots how the target evolves across forecast steps.

We pass:

• target_name="subsidence"

• quantiles=[0.1, 0.5, 0.9]

• kind="temporal"

• sample_ids="first_n" with num_samples=3

This tells the plotting function to show the first three sample trajectories and to interpret the columns as quantile forecasts.

The function is documented to accept long-format forecasts with sample_idx and forecast_step and to produce temporal line plots for individual samples/items.

plot_forecasts(
    forecast_df=forecast_df,
    target_name="subsidence",
    quantiles=[0.1, 0.5, 0.9],
    kind="temporal",
    sample_ids="first_n",
    num_samples=3,
    max_cols=2,
    figsize=(9.0, 4.8),
    show_grid=True,
    grid_props={"linestyle": ":", "alpha": 0.7},
    show=True,
    verbose=0,
)

How to read the temporal view

The temporal panels should be read in layers.

First layer: the median path

The median forecast (typically the q50 line) is the central scenario. This is the line you should read first.

It tells you:

• whether the model expects the target to rise or fall,

• how quickly the change happens across the horizon,

• whether different samples behave similarly or not.

Second layer: the interval width

The spread between the lower and upper quantiles shows forecast uncertainty.

In many forecasting systems, wider intervals at later steps are expected because the model becomes less certain further into the future.

Third layer: actual-versus-predicted agreement

When actual values are available, compare them against the median path and the interval band.

A good quick-look interpretation is:

• best: actual values stay close to the median and inside the interval;

• acceptable: actual values drift from the median but remain mostly within the interval;

• warning sign: actual values repeatedly sit outside the interval or show a different directional trend.

This is why plot_forecasts is such a strong first diagnostic: it does not replace formal metrics, but it quickly reveals whether the forecast trajectories are visually plausible.

Step 4 - Spatial forecast view for one horizon step

The same function also supports a spatial quick-look.

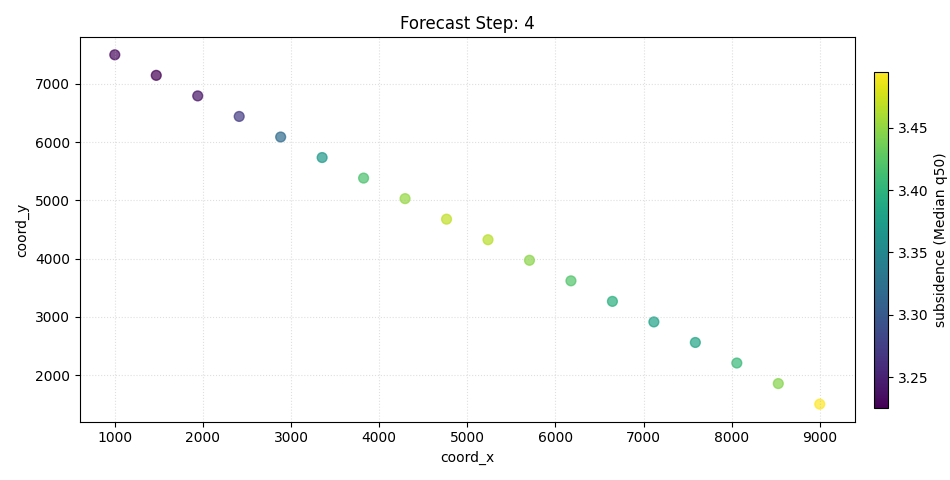

In that mode, we choose one forecast step and inspect the target across space using coord_x and coord_y.

This is useful when the forecast table already contains spatial coordinates. The function documentation explicitly notes that spatial scatter plots are supported when spatial columns are provided.

Here we inspect horizon step 4. This gives a map-like snapshot of the late-horizon forecast field.

plot_forecasts(
    forecast_df=forecast_df,
    target_name="subsidence",
    quantiles=[0.1, 0.5, 0.9],
    kind="spatial",
    horizon_steps=4,
    spatial_cols=["coord_x", "coord_y"],
    max_cols=2,
    cbar="uniform",
    figsize=(9.5, 4.8),
    show_grid=True,
    grid_props={"linestyle": ":", "alpha": 0.4},
    show=True,
    verbose=0,
)

How to read the spatial view

The spatial view answers a different question from the temporal one.

Instead of asking:

• How does one sample evolve through time?

it asks:

• What does one forecast step look like across space?

The most useful reading order is:

1. identify the overall spatial gradient,

2. compare the median forecast with the actual field,

3. compare lower and upper quantiles to understand the local spread.

What to look for

In a forecast map, focus on:

• high-value zones: where the model expects stronger response;

• smoothness or discontinuity: whether the spatial field looks physically plausible;

• actual-versus-forecast mismatch: whether important hotspots are missed or misplaced;

• quantile spread: whether uncertain zones are also the zones with the strongest predicted signal.

In this synthetic example, the field was constructed with a gentle spatial gradient plus a lead-time effect, so the late-step panels should show a coherent, interpretable spatial pattern rather than random speckle.

Step 5 - Inspect uncertainty growth numerically

A lesson page becomes stronger when the visual interpretation is paired with a small numerical check.

Since we built quantile forecasts, we can measure the mean interval width by forecast step:

(1)\[\begin{split}\\text{width} = q90 - q10\end{split}\]

This is not required by the plotting function, but it helps the reader connect the visual widening of intervals to a concrete number.

forecast_df["interval_width"] = (
    forecast_df["subsidence_q90"] - forecast_df["subsidence_q10"]
)

width_summary = (
    forecast_df.groupby("forecast_step")
    .agg(
        mean_interval_width=("interval_width", "mean"),
        min_interval_width=("interval_width", "min"),
        max_interval_width=("interval_width", "max"),
    )
    .reset_index()
)

print("")
print("Forecast interval width by step")
print(width_summary.to_string(index=False))

Forecast interval width by step
 forecast_step  mean_interval_width  min_interval_width  max_interval_width
             1               0.4800              0.4800              0.4800
             2               0.6000              0.6000              0.6000
             3               0.7200              0.7200              0.7200
             4               0.8400              0.8400              0.8400

Why this numerical check matters

If the temporal panels look wider at later horizons, this table should confirm it. That gives the user two complementary ways to understand the same forecast behavior:

• visually from the plotted bands,

• numerically from the interval-width summary.

In a real workflow, this kind of small check is often useful before moving on to more formal uncertainty diagnostics.

Step 6 - Practical interpretation guide

Here is the most important takeaway from this lesson.

Use plot_forecasts when you want a fast first reading of a forecast table.

It is especially good for:

• checking whether forecast trajectories are directionally sensible,

• seeing whether predictive intervals widen with lead time,

• comparing predicted and actual values at a glance,

• inspecting one horizon step spatially before building more presentation-style maps.

What it is not for

plot_forecasts is a quick-look viewer, not the final figure for every forecasting story.

Once the basic forecast behavior looks reasonable, you will often move next to:

• forecast_view for year-by-year spatial forecast grids,

• plot_eval_future for holdout-versus-future comparison,

• the uncertainty plotting functions for calibration and coverage.

So this lesson should be read as the entry point into the forecasting gallery.

Command-line and workflow note

In practice, users usually call this viewer after Stage-4 inference has already produced a forecast table in long format.

The key habit to remember is:

1. inspect the table structure first,

2. use the temporal view to understand sample-wise behavior,

3. use the spatial view to understand horizon-wise structure,

4. only then move on to more specialized forecast diagnostics.
